ECLIPSE Ts2-FL
Gallery
Overview

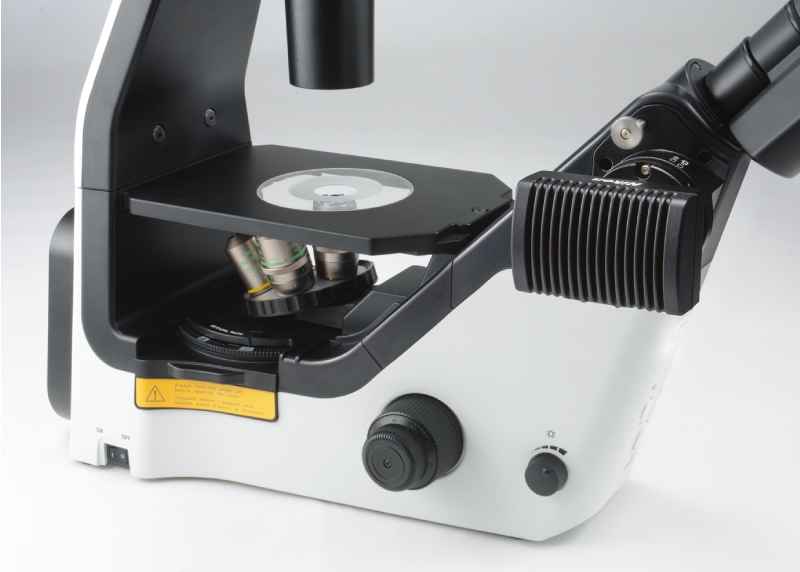

The Nikon ECLIPSE Ts2-FL adds advanced fluorescence imaging to the Ts2 platform, making it ideal for live-cell work and fluorescence-based assays. Along with all transmitted-light contrast modes of the Ts2, the Ts2-FL incorporates a built-in LED epi-fluorescence system capable of supporting multiple excitation wavelengths. Its efficient LED design ensures stable, bright fluorescence signals with minimal heat generation. For labs working in brightly lit rooms, an optional Contrast Shield improves fluorescent image quality by blocking ambient light. Compact, user-friendly, and versatile, the Ts2-FL is well suited for research, diagnostics, and teaching applications.
Specifications
Optical System: Nikon CFI60 infinity-corrected optics
Observation Methods: Brightfield, Phase Contrast, APC, Emboss Contrast, Epi-Fluorescence
Transmitted-Light Illumination: High-intensity white LED with uniform fly-eye optical design
Epi-Fluorescence Illumination:
LED fluorescence illuminator
Supports up to 3 LED modules
Available wavelengths: 385, 455, 470, 505, 525, 560, 590, 625 nm
Fluorescence Filter Turret: 4-position turret with noise-control shutter; one position used for brightfield observation
Microscope Tube: 45° incline, Siedentopf design; adjustable IPD 50–75 mm; optional camera port (100/0 or 0/100)
Eyepieces: 10× (22 mm FOV), 15× (16 mm FOV), 20× (12.5 mm FOV)
Focusing System: Manual fine/coarse focusing; +7 mm to –1.5 mm travel; coarse 37.7 mm/rotation; fine 0.2 mm/rotation
Nosepiece: 5-position revolving
Condenser: ELWD condenser, NA 0.3, 75 mm working distance

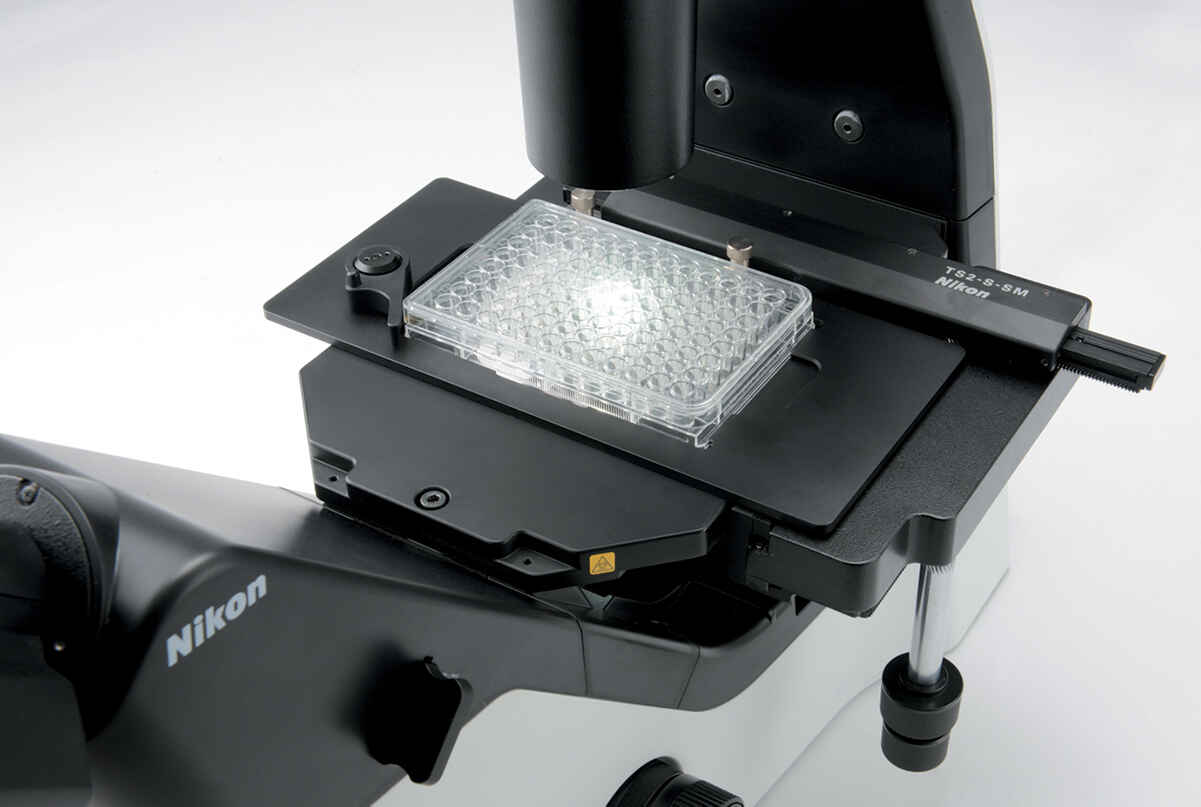

Stages: Plain stage or mechanical stage (126 × 78 mm travel)
Sample Holders: Supports slides, 35 mm dishes, 100 mm dishes, Terasaki plates, universal holder, hemocytometer holder

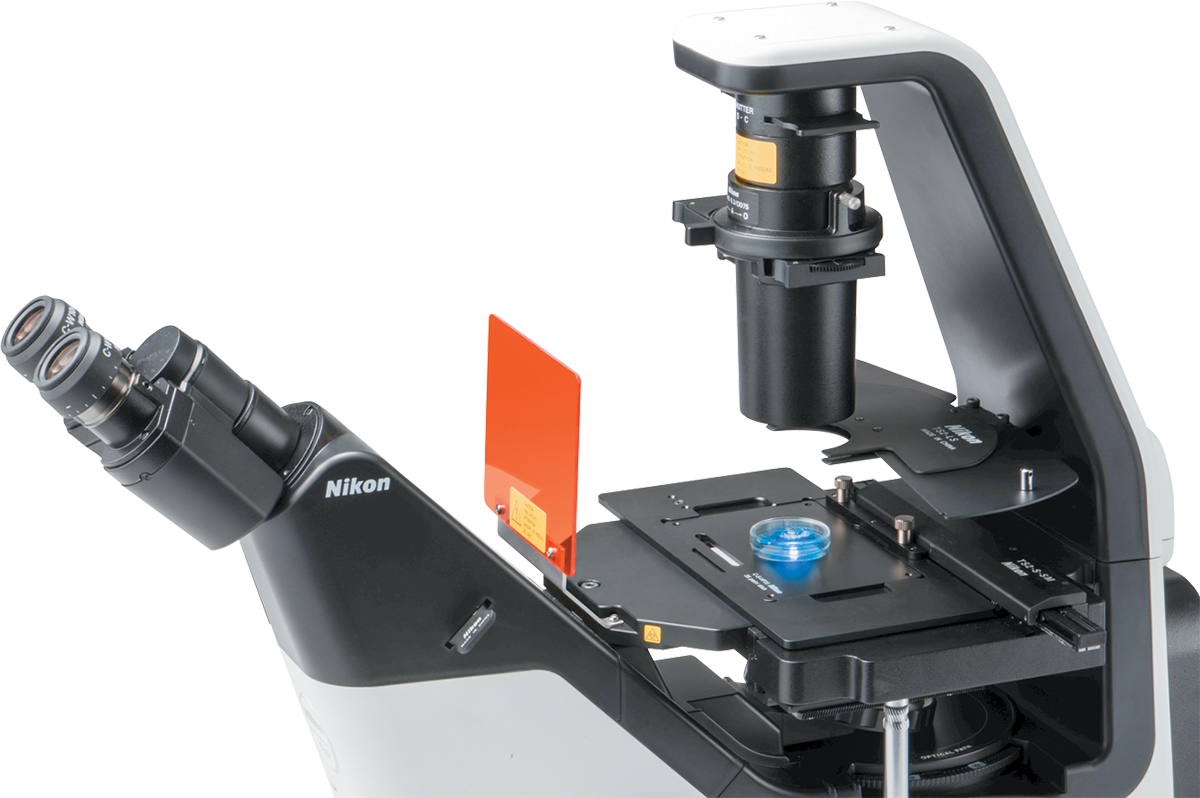

Optional Accessory: Contrast Shield for enhancing fluorescence contrast in bright environments
Dimensions (W × D × H): 236 × 564 × 471 mm
Weight: Approx. 14.5 kg
Power Requirements: 100–240 V AC, 50/60 Hz
