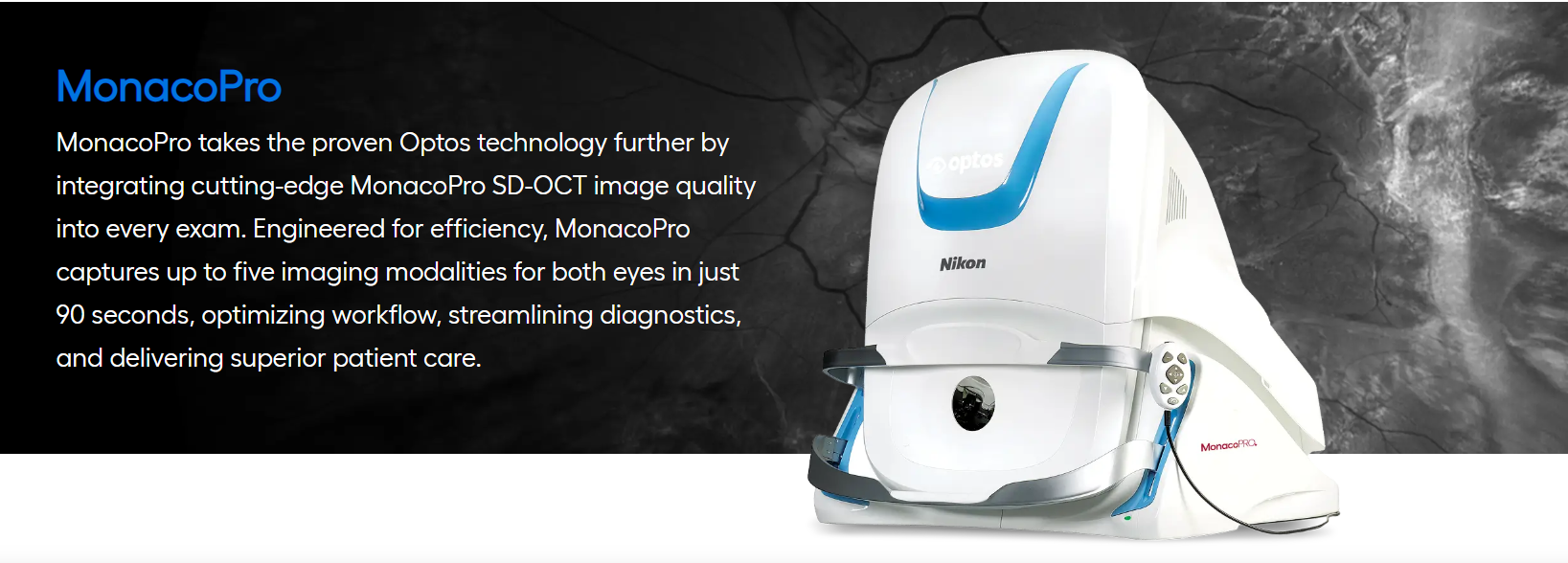

Overview
Key Imaging Features
-
Non-mydriatic imaging – operates effectively with pupils as small as 2 mm¹
-
cSLO technology – enables imaging through most cataracts²
-
3-in-1 Color Depth™ Imaging – delivers valuable clinical information from the retinal surface through to the choroid
Software & Analysis Tools
-
OptosAdvance™ image management software simplifies image review and consultations
-
Comprehensive Reference Database (RDB) displays OCT analysis results in relation to 1%, 5%, 95%, and 99% of the RDB population
-
AreaAssist helps streamline retinal imaging workflows by automatically identifying and measuring continuous color areas with adjustable sensitivity
-
Provides distance (mm) and area (mm²) measurements for objective monitoring over time
Data Security & Compliance
-
Built-in cybersecurity features align with ISO 27032 and FDA Cybersecurity in Medical Devices guidelines, providing robust protection against digital threats
-
DICOM-compatible software ensures compliance with relevant healthcare data regulations³
Specifications
Image Modalities:

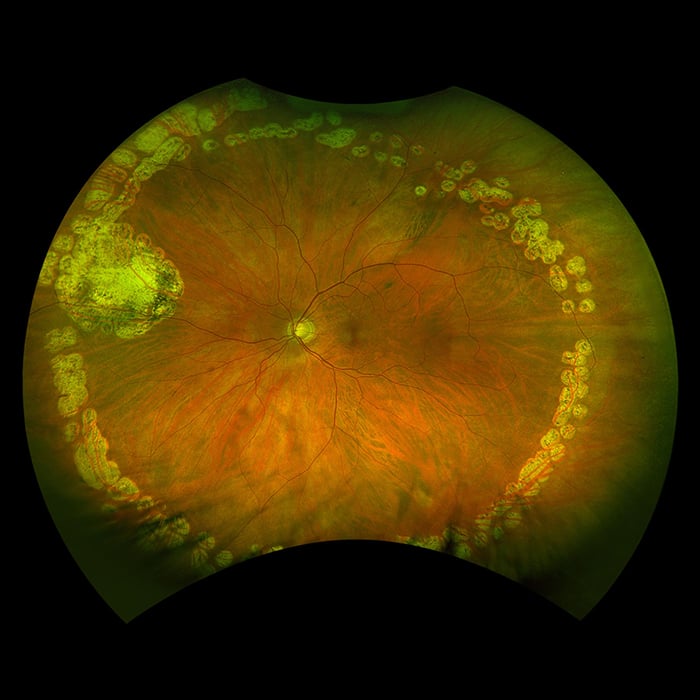

optomap color rg (red and green laser)

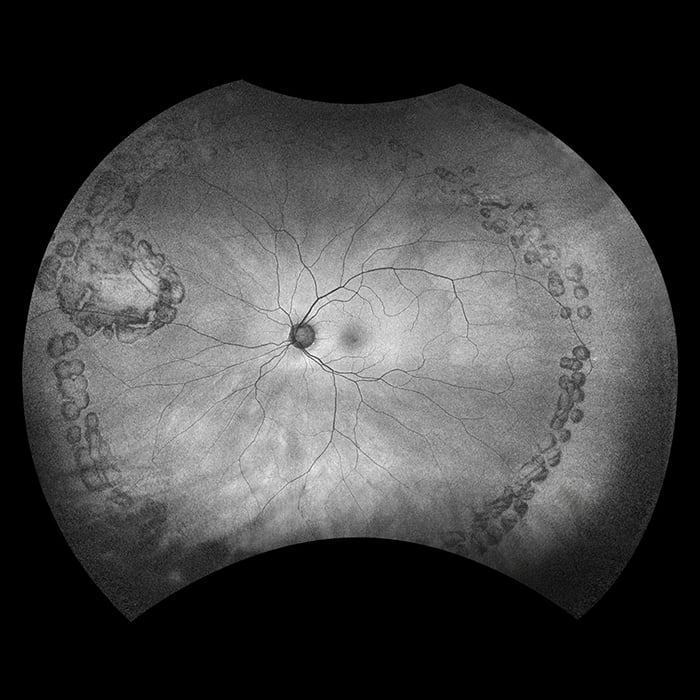

optomap Sensory Retina (green laser)

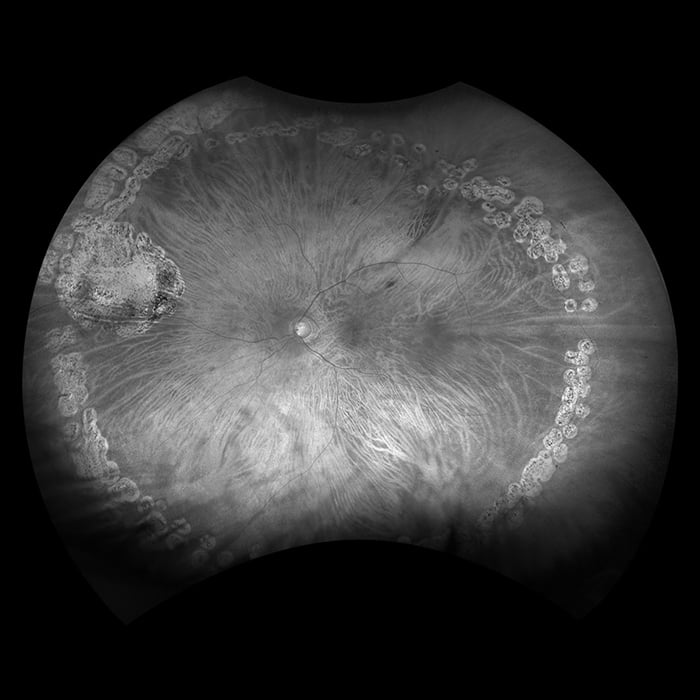

optomap Choroidal (red laser)
optomap green af (green laser): autofluorescence
Spectral Domain Optical Coherence Tomography (OCT)
Resolution:
optomap plus: 14 μm
optomap: 20 μm
Exposure Time: Less than 0.4 seconds
OCT Scan Types:
Line Scan
Raster Scan
Retina Topography Scan
Optic Nerve Head (ONH) Topography Scan
Retinal Nerve Fiber Layer (RNFL) Scan
Wavelengths:
Red laser: 635 nm
Green laser: 532 nm (for af )
Tomographic Imaging:
Signal Type: Optical scattering from tissue
Signal Source: Super luminescent Diode (SlD) 840 nm
Optical Power: laser safety Class-1 following IEC/en60825-1:2014
Typical Axial Resolution: <7 micron (in tissue) Digital on-screen <5 micron
Transverse Resolution: <20 micron (in tissue), Digital on-screen <15 micron
Scanners: Galavanometric with X, Y mirrors
Scan Depth: 2.3 mm (in tissue)
OCT Scan Characteristics:
Spectral Domain OCT
A-Scan rate up to 70k cycles/s
Active eye tracking
Automatic scan positioning

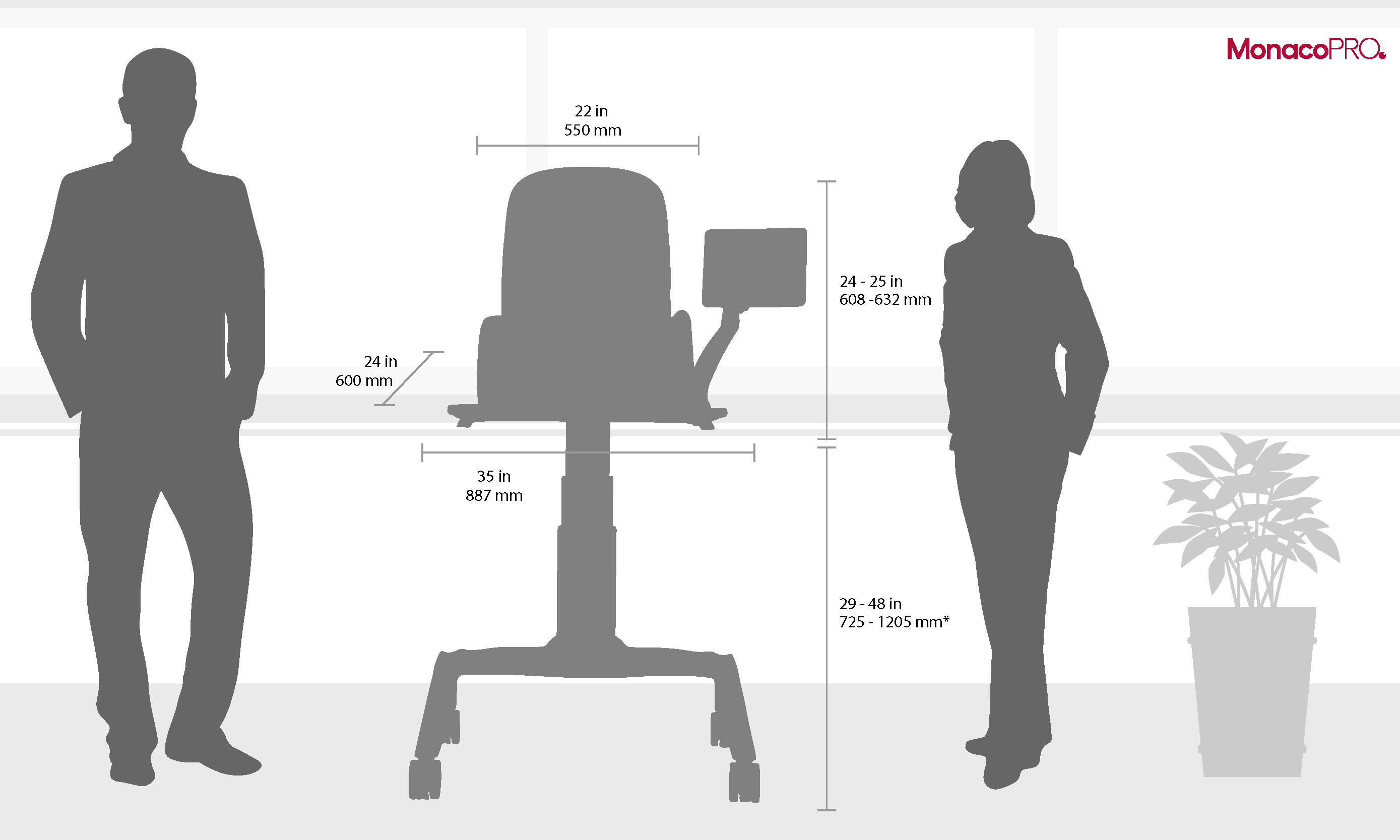

Footprint:
Width: 550 mm/22 inches
Depth: 570 mm/23 inches
Height: 606 - 632 mm/24-25 inches
