ECLIPSE E200 POL
Gallery
Overview
The Nikon Eclipse E200 POL is a cost-effective, compact polarizing microscope that brings real polarimetry capabilities into a space-saving design. Built on Nikon’s CFI60 infinity optical system, it offers excellent image clarity, high numerical aperture, and long working distance. Its body is based on the E200 biological microscope, allowing compatibility with many Eclipse-series accessories and objectives. The E200 POL includes a built-in Bertrand lens for conoscopic observation, a rotary stage with fine vernier control, and a slider that accommodates a combined quarter-wave (¼ λ) and red tint plate. Loading and switching between filters is easy, and the lamp is user-replaceable from the top, making maintenance simple. A refocusing rotating stage mechanism helps prevent sample damage, making it ideal for routine polarizing microscopy in educational labs, geology, and materials science applications.
Specifications
-
Optical System
-
CFI60 infinity-corrected optics
-
-
Eyepieces
-
Standard: 10×, 22 mm field of view, CM type with 90° crosshair and micrometer scale
-
Basic: 10×, 20 mm field of view
-
-
Eyepiece Tubes
-
Standard: P-TB2 binocular, P-TT3 trinocular
-
Basic: E2-TB binocular, E2-TF trinocular
-
-
Intermediate Tube
-
Built-in, focusable Bertrand lens (removable from the optical path)
-
Built-in analyzer (removable)
-
Switchable between conoscopic and orthoscopic observation
-
Slot for compensator or test plate
-
-
Analyzer
-
360° rotary dial
-
Minimum reading angle: 0.1°
-
-
Nosepiece
-
Quadruple fixed nosepiece
-
-
Focusing (Coarse / Fine)
-
Fine focus: 0.2 mm per rotation
-
Coarse focus: 37.7 mm per rotation
-
Minimum fine focus reading: 2 μm (on left-side fine control knob)
-
Adjustable coarse motion torque
-

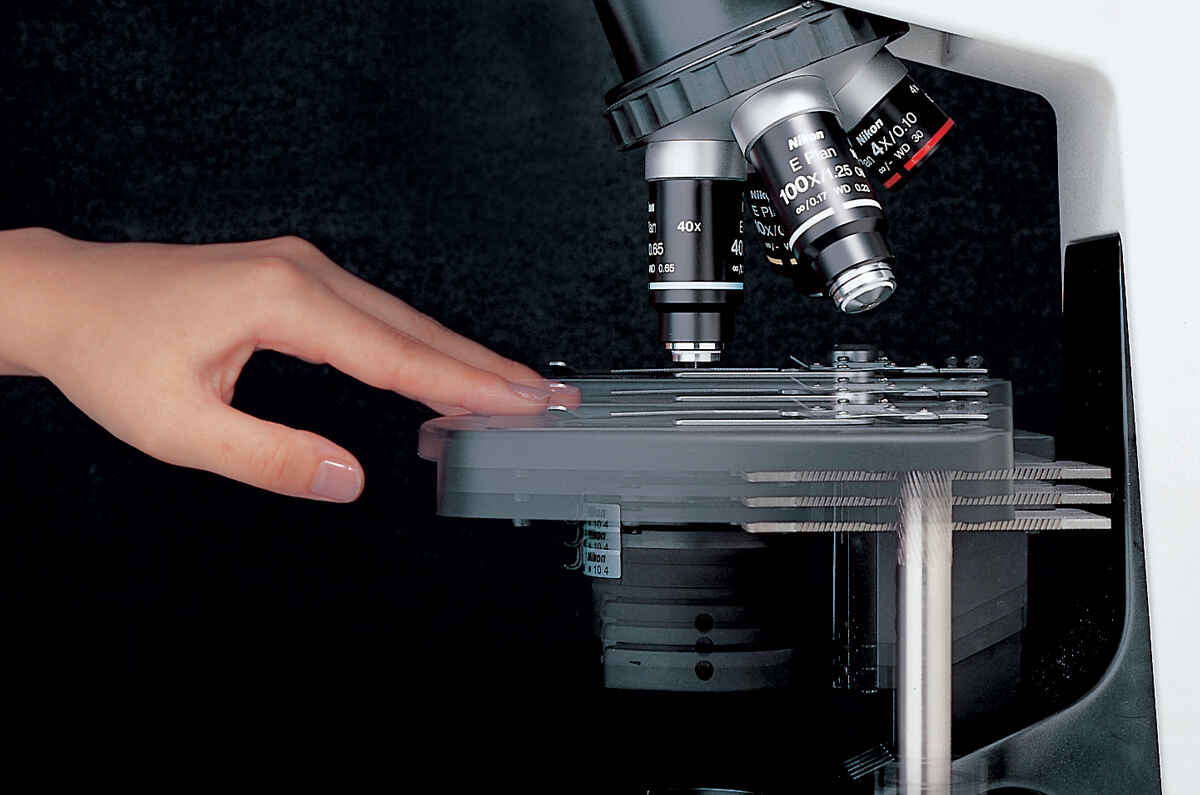

Refocusing stage built into the design for safe slide exchange
-
-
Stage
-

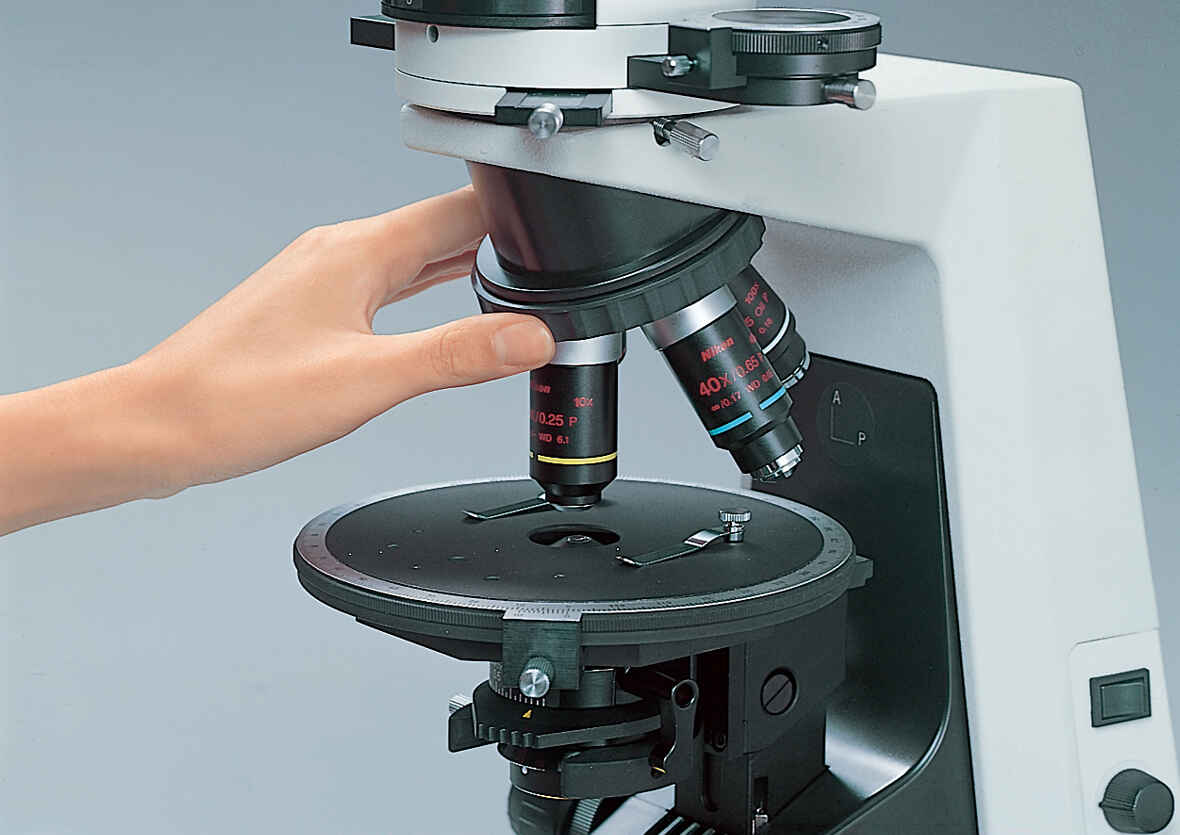

Circular graduated stage (160 mm diameter)
-
Graduations at 1° increments
-
Vernier scale reading to 0.1°
-
-
Illumination
-

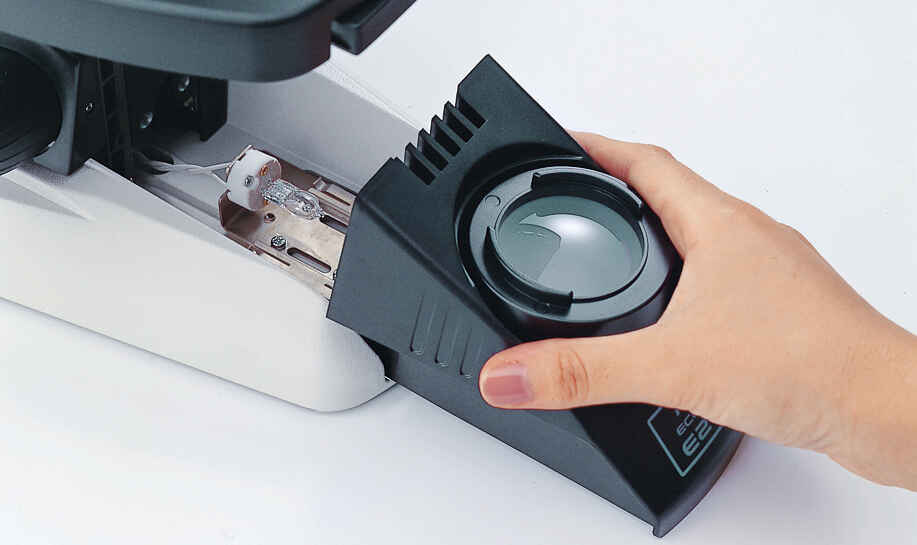

Built-in 6 V, 30 W halogen lamp (pre-centered and pre-focused)
-
Continuously variable intensity control
-
-
Objectives
-

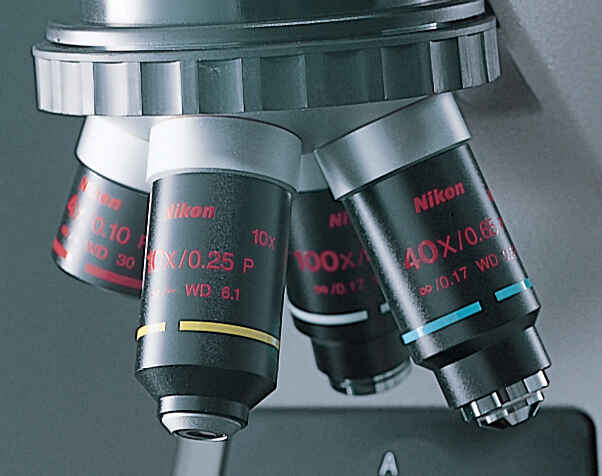

CFI Achromat P series: 4×, 10×, LWD 20×, 40×, 100× (oil)
-
-
Condenser
-
Strain-free swing-out condenser (dedicated to polarization)
-
-
Polarizer
-
Attachable under the condenser
-
-
Compensators / Test Plates
-
Standard: ¼ λ plate + first–order red tint plate (on combined slider)
-
Optional: Quartz wedge or Senarmont compensator (insertable via intermediate tube)
-
