ECLIPSE LV100N
Gallery
Overview
The Nikon Eclipse LV100N POL LED is a high-performance polarizing microscope designed to deliver exceptional stability, optical clarity, and durability for advanced materials research. Built on Nikon’s CFI60 infinity-optics platform, this instrument offers long working distances and high numerical aperture, giving you crisp, high-contrast images under both transmitted (diascopic) and reflected (episcopic) light. The built-in, high color-rendering LED illuminator minimizes heat and focus drift while providing consistent, uniform lighting — ideal for sensitive or temperature-sensitive samples. With a robust 30 mm focus stroke, a precise 360° rotatable graduated stage, and a centering quintuple nosepiece with a DIN compensator slot, the LV100N POL LED supports both qualitative and quantitative polarizing microscopy. The integrated intermediate tube includes a Bertrand lens for conoscopic and orthoscopic observations, and the analyzer rotates smoothly through 360°. This microscope is engineered for demanding polarizing applications, whether for geological, metallurgical, or industrial inspection purposes, combining precision mechanics with long-term reliability.
Specifications
-
Optical System:
-
CFI60 Infinity-corrected optical system
-
-
Illumination:
-
High color-rendering LED light source
-
Built-in 12 V, 24 W power supply
-
Diascopic / Episcopic illumination switch
-
Fly-eye lens for uniform field illumination
-
Built-in NCB11 and ND8 filters
-
-
Focusing:
-
Coaxial coarse and fine focus knobs
-
Focus stroke: 30 mm
-
Coarse focus: 14 mm per rotation
-
Fine focus: 0.1 mm per rotation
-
Minimum reading increment: 1 µm
-
-
Eyepieces:
-
CFI 10× (22 mm FOV)
-
CFI 10× CM (22 mm, with crosshair)
-
CFI 12.5× (16 mm)
-
CFI 15× (14.5 mm)
-
-
Eyepiece Tube Options:
-
P-TT3 Trinocular tube (for polarizing microscopy)
-
P-TB2 Binocular tube (for polarizing microscopy)
-
-
Intermediate Tube:
-
Integrated focusable Bertrand lens (removable from the optical path)
-
Switchable between conoscopic and orthoscopic observation modes
-

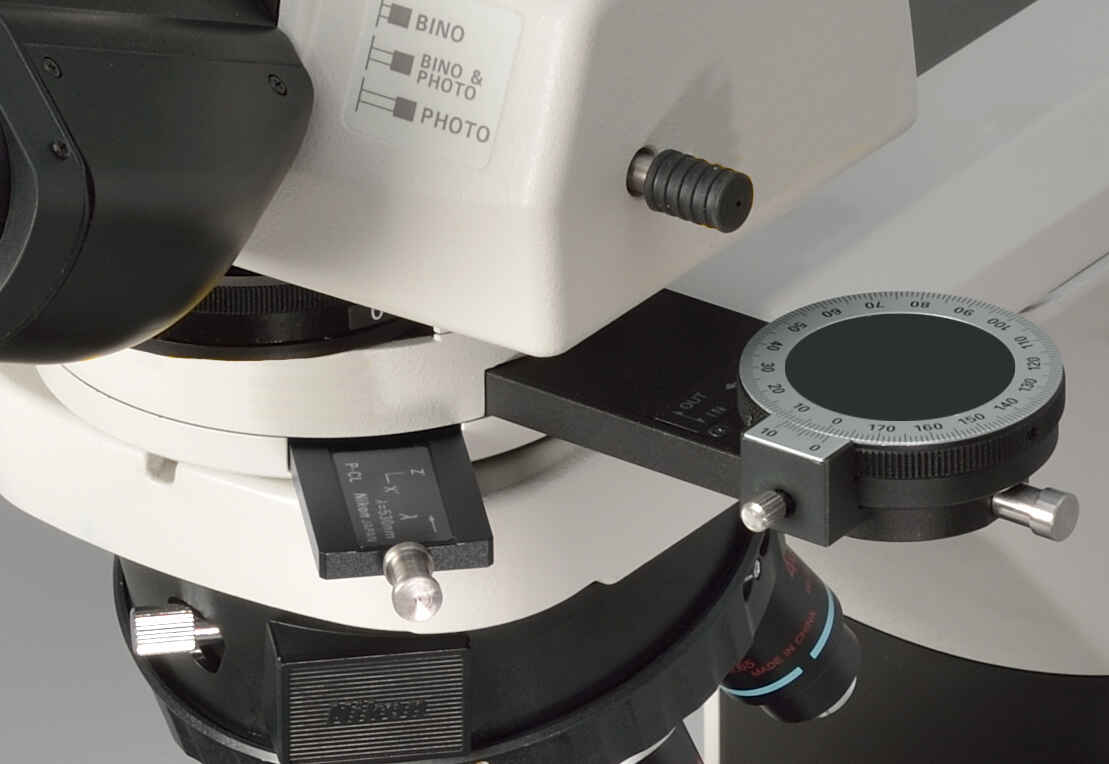

Built-in analyzer and accessory / compensator slot
-
-
Analyzer:
-
360° rotary dial
-
Minimum angle reading: 0.1°
-
-

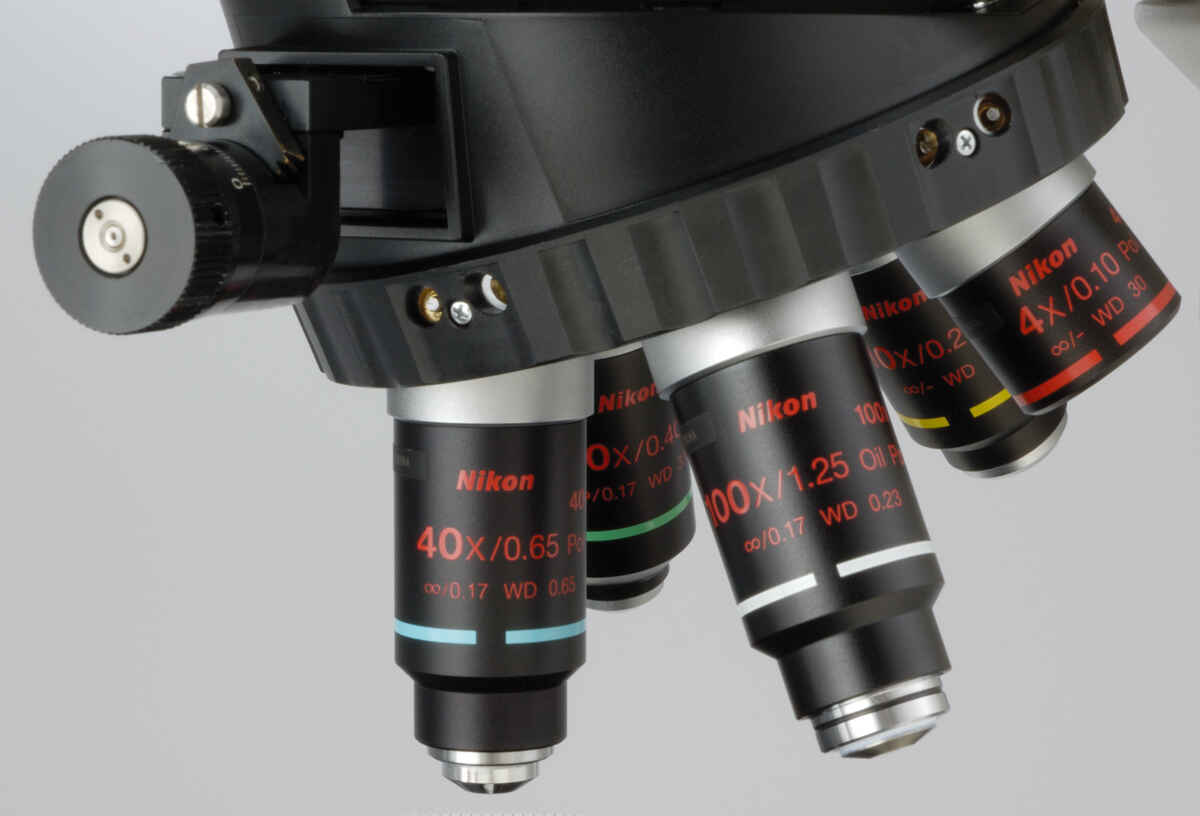

Nosepiece:
-
Centering, quintuple (five-position) nosepiece (detachable)
-
Includes a DIN-standard compensator slotStage:
-

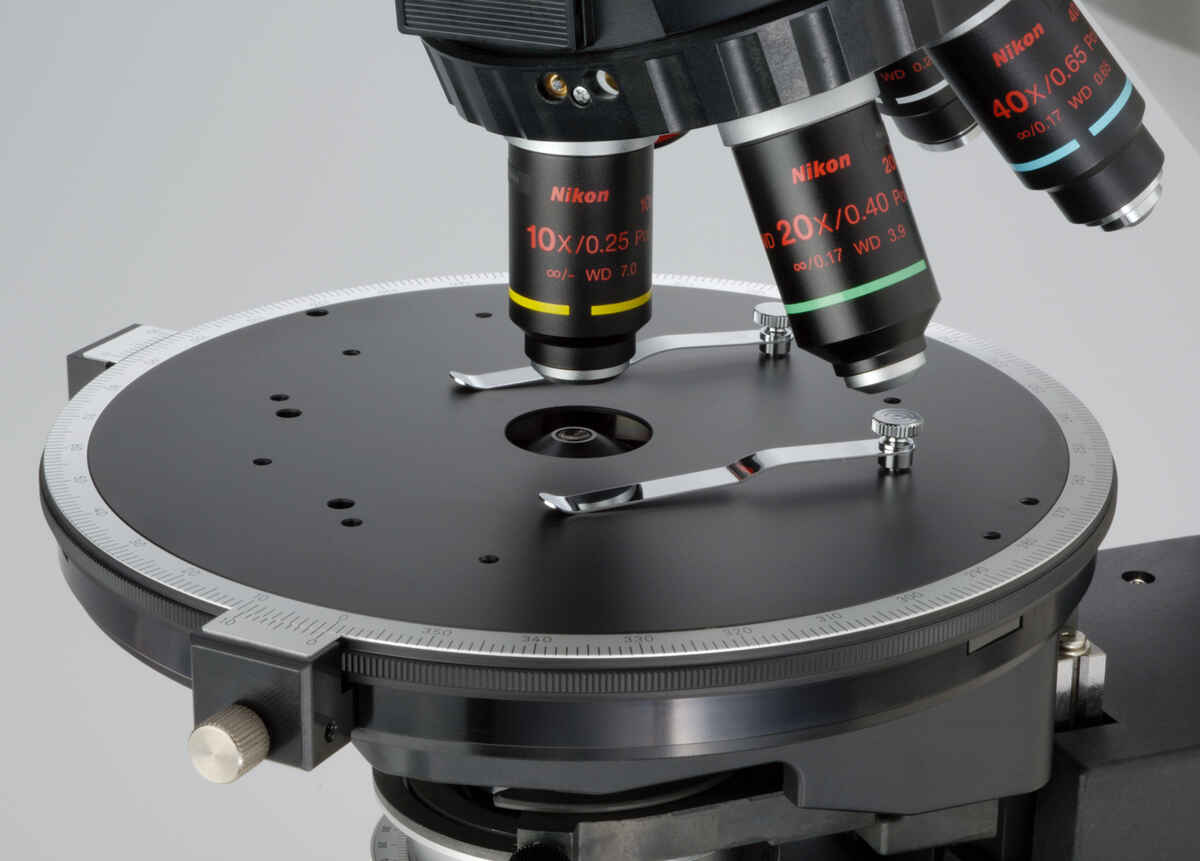

Dedicated circular graduated stage optimized for polarizing microscopy
-
Rotates 360° horizontally, lockable at any position
-
Graduated in 1° increments, with click-stops every 45°
-
Optional mechanical stage can be attached; travel = 35 × 25 mm, with 0.1 mm vernier scale
-
-
Condenser:
-
Strain-free swing-out condenser design
-
Numerical aperture (N.A.): 0.9 (P Achromat)Polarizer:
-
Fixed to the underside of the condenser holder
-
Includes scale markings for alignment
-
-
Objectives:
-
Diascopic (transmitted light): CFI Achromat P series — 4×, 10×, LWD 20×, 40×, 100× (oil)
-
Episcopic (reflected light): CFI LU Plan Fluor EPI P series — 5×, 10×, 20×, 50×, 100× (oil)
-
-
Episcopic Illuminator:
-
Comes with the LV-UEPI-N universal epi-illuminator
-
Uses the same built-in 12 V, 24 W supply as diascopic illumination
-
-
Compensators:
-
Supports P-CL standard ¼ λ & tint plate
-
Optional quartz wedge or Sénarmont compensator can be inserted into the intermediate tube slot
-
-
Power Consumption:
-
0.7 A / 58 W
-
-
Weight:
-
Approx. 17 kg (with standard trinocular configuration)
-
