The Nikon SMZ800N is a versatile, high-performance stereo zoom microscope tailored for industrial and materials science applications. With an 8:1 zoom ratio (1×–8×), it offers both a wide field of view at low magnification and high magnification for detailed structural inspection. The optical system uses high-quality “Plan Apo WF” and “ED Plan WF” objectives to minimize chromatic aberration and deliver sharp, bright images across the zoom range. A dual-objective nosepiece enables on-axis imaging—ideal for inspecting hole bottoms or pin structures—without tilting the sample. Ergonomically, the microscope supports a variety of eyepiece tube inclinations (including tilting options) and can be mounted on a slim plain stand or LED diascopic base, minimizing operator fatigue. For contrast enhancement on transparent samples, it can be fitted with OCC (Oblique Coherent Contrast) illumination. With its compact 6.8 kg body and a broad accessory ecosystem, the SMZ800N bridges routine inspection and high-precision research workflows.
Specifications
Optical system: Parallel-optics, zoom type
Zoom ratio: 8 : 1
Zoom range: 1×, 2×, 3×, 4×, 6×, 8× stops
Total magnification: 5× – 480× (depends on eyepiece & objective)
Magnification with coaxial episcopic illuminator: 22.5× – 540×
Eyepiece tube options:
20° binocular (P-B)
15° trinocular (P-TL100)
Tilting trinocular (0°–30°, P-TERG100 or P-TERG50)
Eyepieces:
C-W 10×B (F.N. 22)
C-W 15× (F.N. 16)
C-W 20× (F.N. 12.5)
C-W 30× (F.N. 7)
Objectives:
Plan Apo 0.5× / WF
Plan Apo 0.75× / WF
Plan Apo 1× / WF
ED Plan 1.5× / WF
ED Plan 2× / WF
Plan 1×
ED Plan 0.75×
Achromat 0.5×
Working distance: ~78 mm (with Plan 1× objective)
Weight: ~6.8 kg (with P-B binocular tube + plain stand)
Key features:
- High-resolution optics, corrected for chromatic aberration
- Double-objective nosepiece for on-axis imaging
- Ergonomic tube inclinations and slim stand options

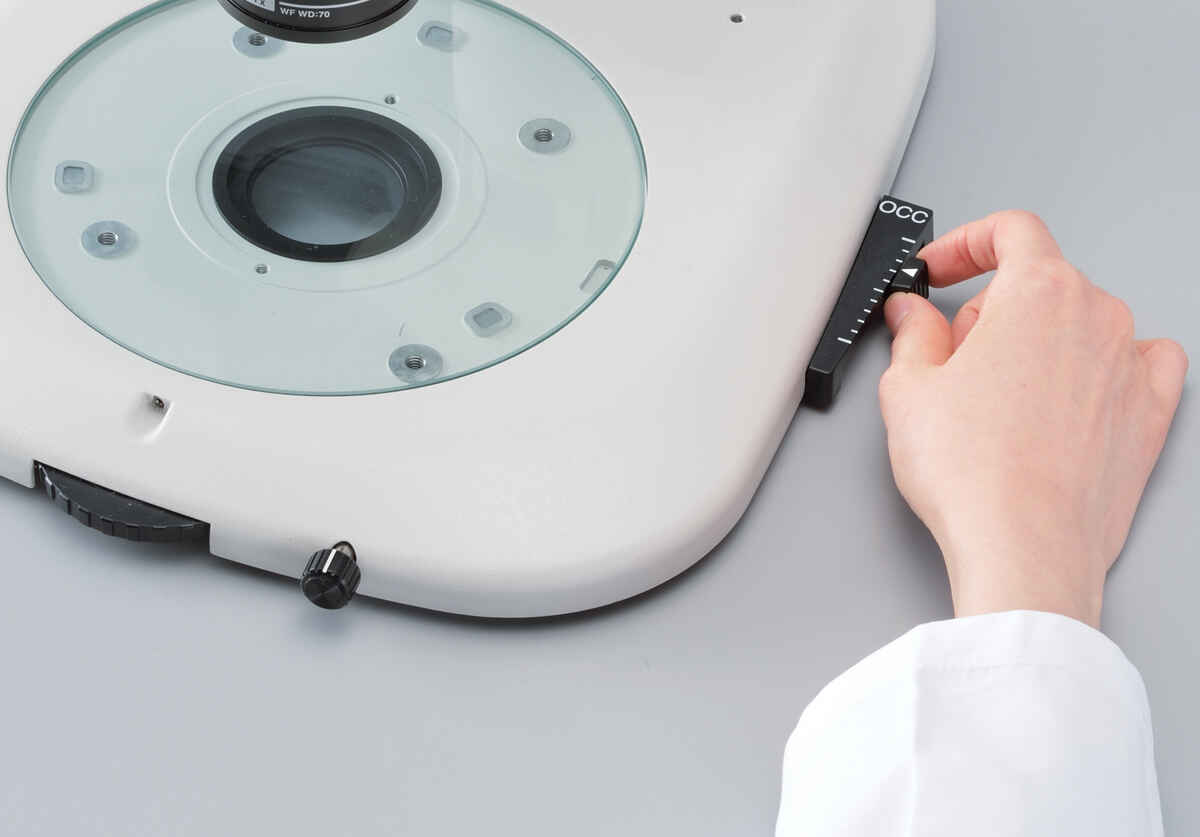

- Supports OCC (Oblique Coherent Contrast) illumination for better contrast in transparent samples
- Expandable with a wide range of accessories (e.g., trinocular tubes, LED stands)
