ECLIPSE Ci-E

Clinical and laboratory microscopes featuring LED illumination*, providing stress-free operation for routine use

Home / Products / Nikon / Upright Microscope

Gallery

Overview

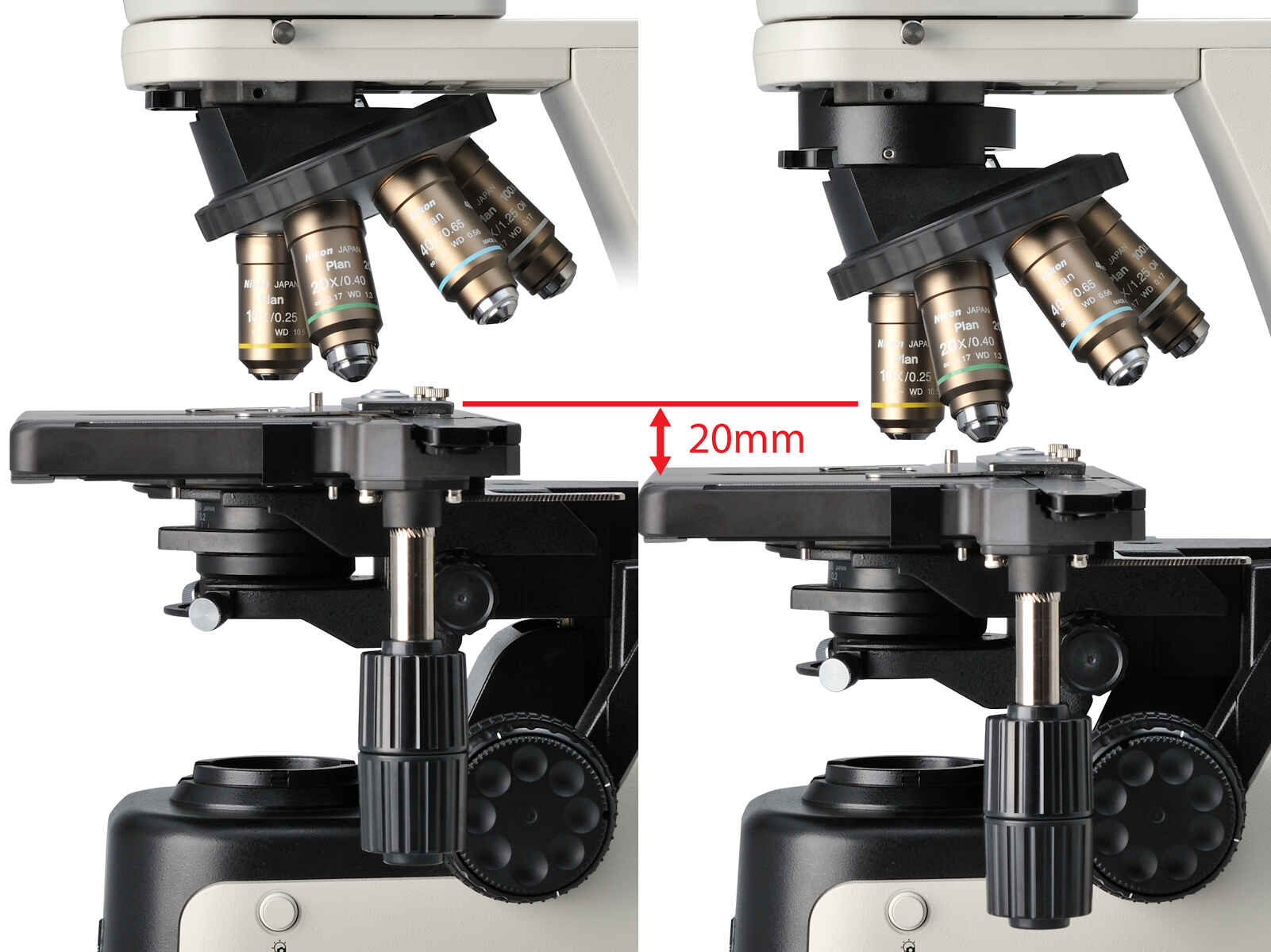

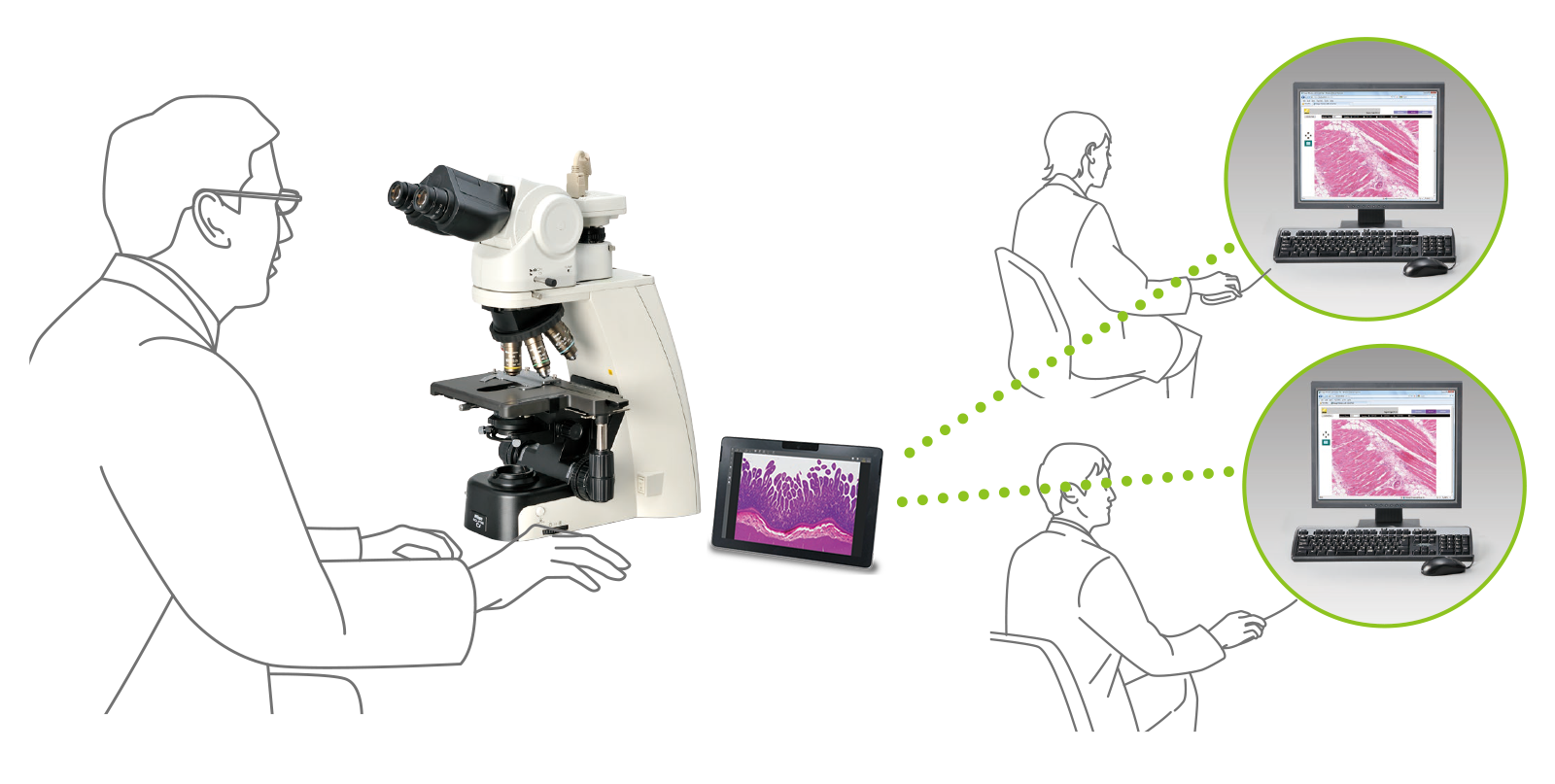

The ECLIPSE Ci‑E is Nikon’s motorized upright microscope designed for high‑throughput lab and clinical settings where rapid switching between magnifications is required. With LED Eco‑illumination that offers a long lifespan and uniform brightness, the Ci‑E reduces maintenance and energy costs. It features motorized magnification switching via buttons on the body or a remote pad, and intelligently remembers the ideal light intensity for each objective. Ergonomically built, it supports a natural viewing posture with a tilting and extendable eyepiece tube, and a height‑adjustable stage that minimizes strain during frequent sample changes. An image‑capture button on the base makes integrating digital imaging seamless when paired with Nikon cameras and NIS‑Elements software. The Ci‑E is versatile, supporting multiple observation modes including brightfield, phase contrast, darkfield, polarization, and fluorescence.

Specifications

Optical System: CFI60 Infinity Optical System
Illumination: High-luminance white LED (“Eco-illumination”)
Light‑Management Features:
- Light Intensity Management (LIM) — recalls user-saved brightness per objective
- ECO mode and Sleep mode to conserve energy
Controls:

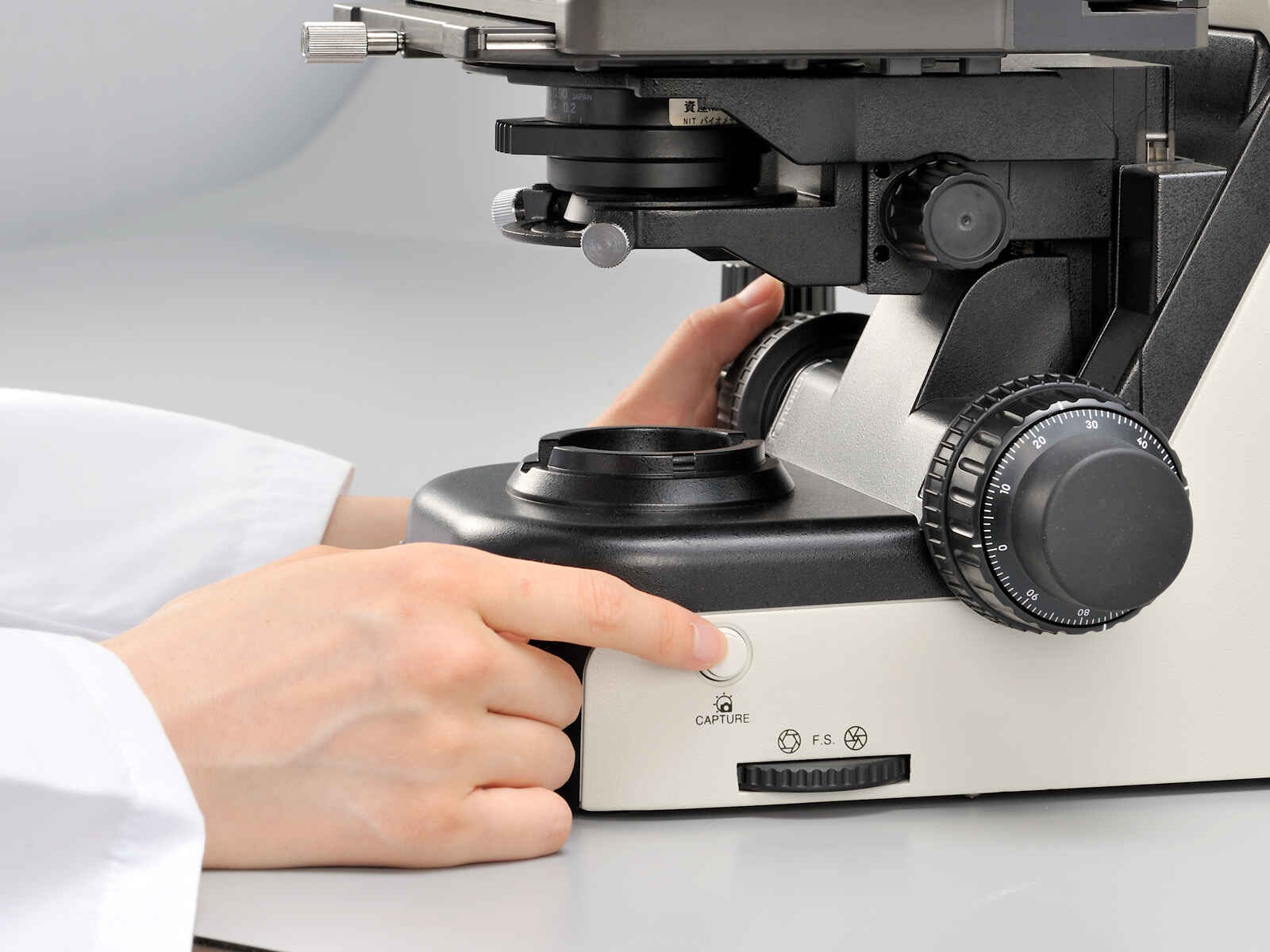

- Image‑capture button on microscope base
- Motorized nosepiece control buttons
- Remote control pad for switching objectives
Eyepieces (Field of View):
- CFI 10× (22 mm)
- CFI 12.5× (16 mm)
- CFI 15× (14.5 mm)
- CFI UW 10× (25 mm)
Focusing:
- Coaxial coarse/fine focus
- Stroke: 30 mm
- Coarse travel: ~9.33 mm per rotation; Fine travel: ~0.1 mm per rotation
- Adjustable coarse torque + refocusing lock function
Tube Options:
- Binocular: C‑TB
- Ergonomic Binocular: C‑TE2 (with 100:0 or 50:50 via optional DSC port), inclination 10°–30°, extension up to 40 mm
- Trinocular (25 mm FOV):
  - C‑TF (100/0 or 0/100)
  - C‑TT (100/0, 20/80, 0/100)
Nosepiece: Motorized sextuple with analyzer slot; options: C‑N6 ESD or C‑N6A

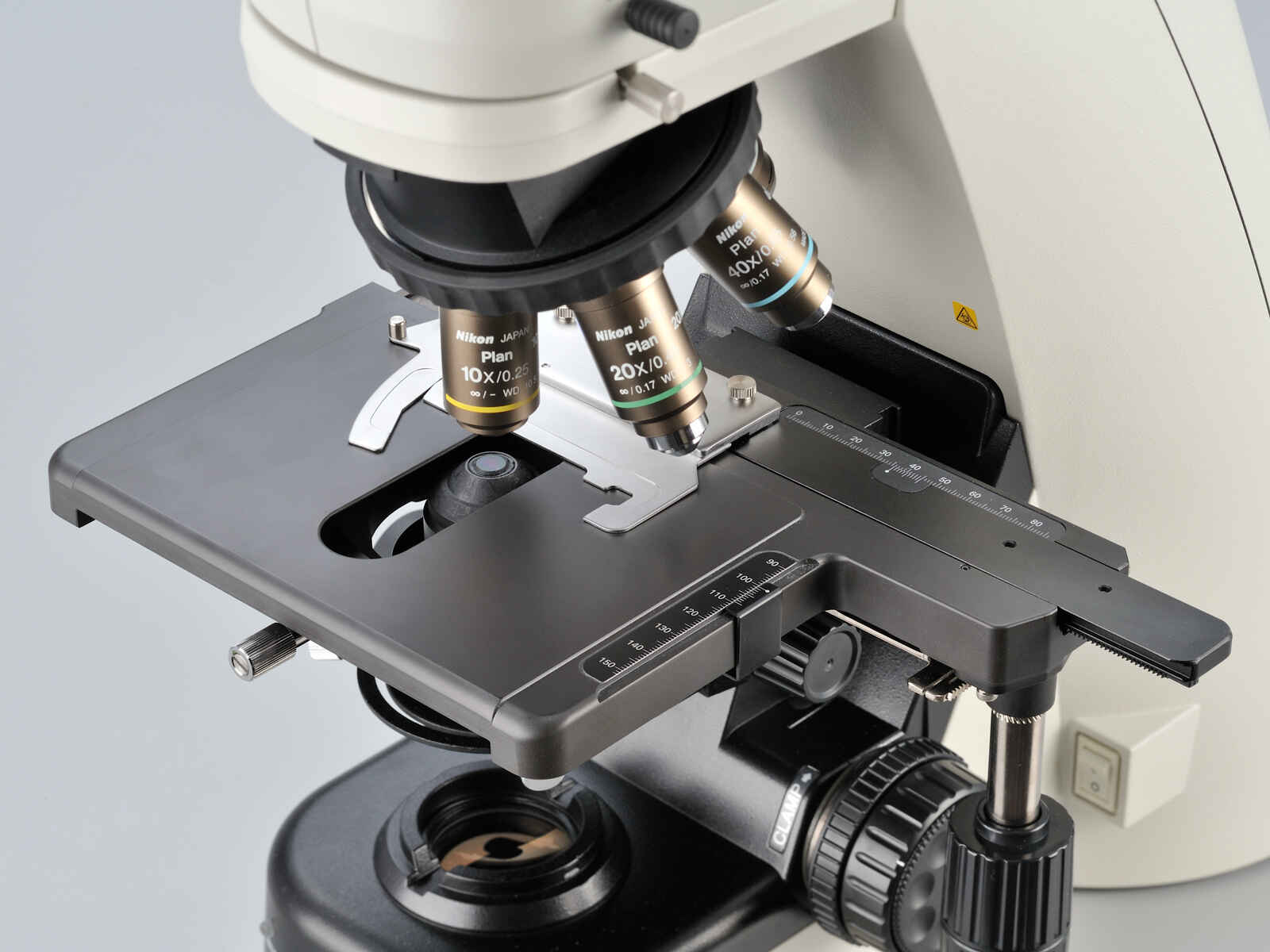

Stage:
- Cross-travel: 78 mm (X) × 54 mm (Y) with vernier scales
- Stage handle height and torque adjustable
- Optional holders:
  - C‑HIC double-arm specimen holder
  - C‑SR2S right-handle stage, C‑CSR / CSR1S ceramic-coated stage + holder options
Condensers:
- Motorized: CI‑C‑E swing-out condenser NA 0.9 / 0.22, with 27 mm focusing stroke
- Manual Options (NA):
  - C‑AB Abbe (0.9)
  - C‑AR Achromat (0.8)
  - C‑DO Oil Darkfield (1.2–1.43)
  - C‑DD Dry Darkfield (0.8–0.95)
  - C‑PH Phase Contrast Turret (0.9)
  - C‑AA Achromat Aplanatic (1.4)
  - C‑SA Slide Achromat (2–100×, 0.9)
  - C‑SW Swing-out Achromat (1–100×, 0.9/0.11)
  - C‑SWA Swing-out Achromat (2–100×, 0.9/0.22)
  - C‑LAR LWD Achromat (0.65)
Observation Methods Supported: Brightfield, epi‑fluorescence, darkfield, phase contrast, simple polarizing, sensitive color polarizing
Epi‑Fluorescence Attachments:
- CI‑FL (4 filter cubes)
- D‑FL (6 filter cubes, with noise-terminator mechanism)
Epi‑Fluorescence Light Sources:
- C‑LEDFI (LED)
- C‑HGFI / HGFIE (130 W pre-centered fiber illuminator)
- 100 W Hg lamp + power supply
Power Consumption: ~13 W (brightfield)
Weight: ~15.4 kg (with binocular standard configuration)
