ECLIPSE Ci-S
Gallery
Overview

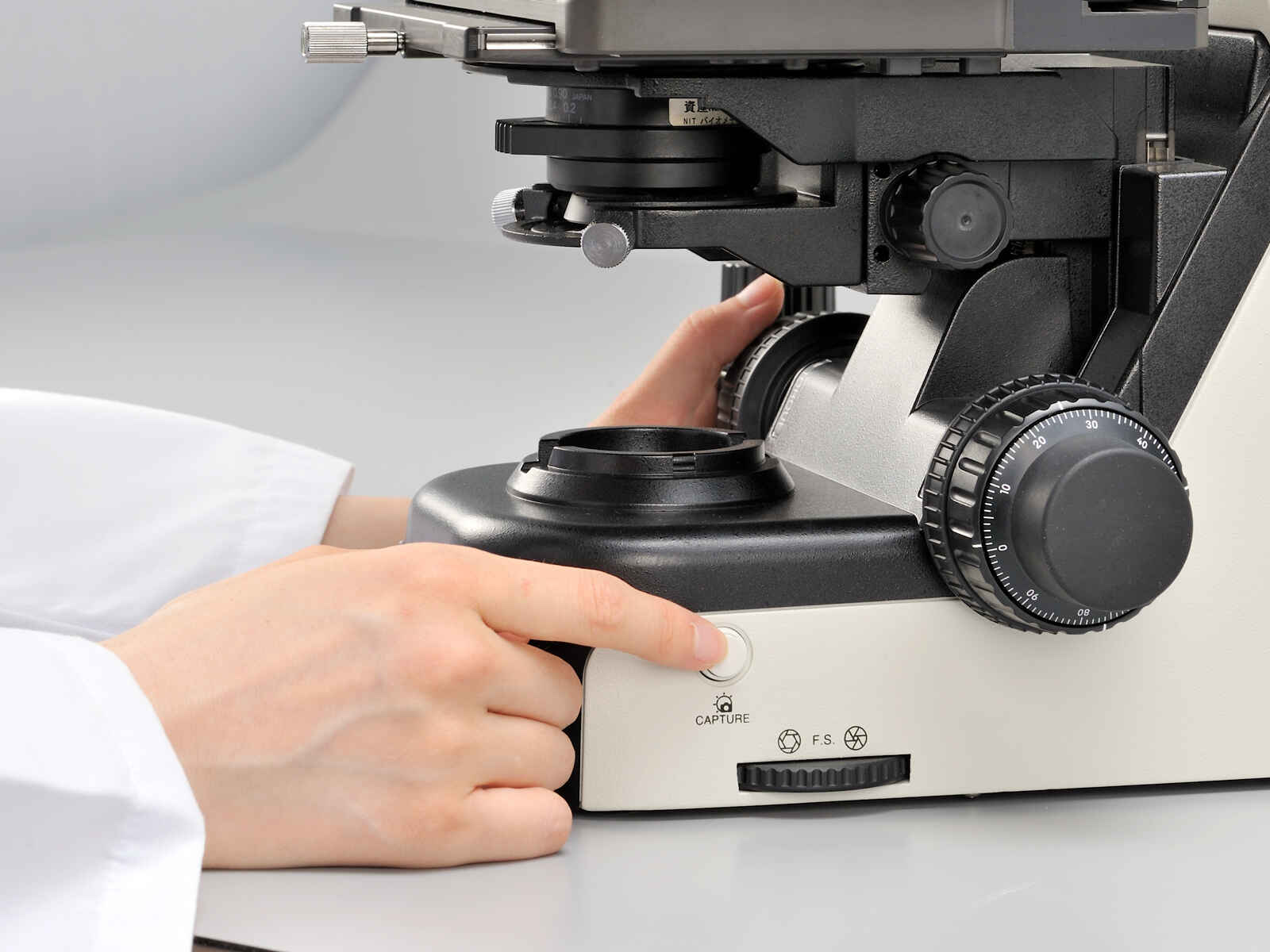

The ECLIPSE Ci‑S is the halogen-illuminated variant of the Ci series, aimed at users who prefer traditional lamp technology. It retains the same ergonomic design, stable stage, and ease-of-use features as the Ci‑E, but uses a 6 V, 30 W halogen light source. The Ci‑S maintains consistent brightness through built-in ND filters and an automatic intensity reproduction system, giving reliable performance at different magnifications. It also offers the same flexible viewing posture, durable ceramic‑coated stage, and simple image capture via the base-mounted button. Like the Ci‑E, it allows a broad range of observation methods — from brightfield to advanced fluorescence — making it suitable for both routine lab work and specialized applications.
Specifications
-
Optical System: CFI60 Infinity Optical System
-
Illumination: 6 V, 30 W halogen lamp; built‑in ND4, ND8, NCB11 filters
-
Light‑Management: Automatic intensity reproduction (remembers brightness per magnification)
-
Controls: ND filter IN/OUT switches for brightness adjustment
-
Eyepieces (FOV): Same as Ci‑E — CFI 10× (22 mm), 12.5× (16 mm), 15× (14.5 mm), UW 10× (25 mm)
-
Focusing:
-
Coaxial coarse/fine focusing
-
30 mm focusing stroke
-
Coarse: ~9.33 mm/rotation, Fine: ~0.1 mm/rotation
-

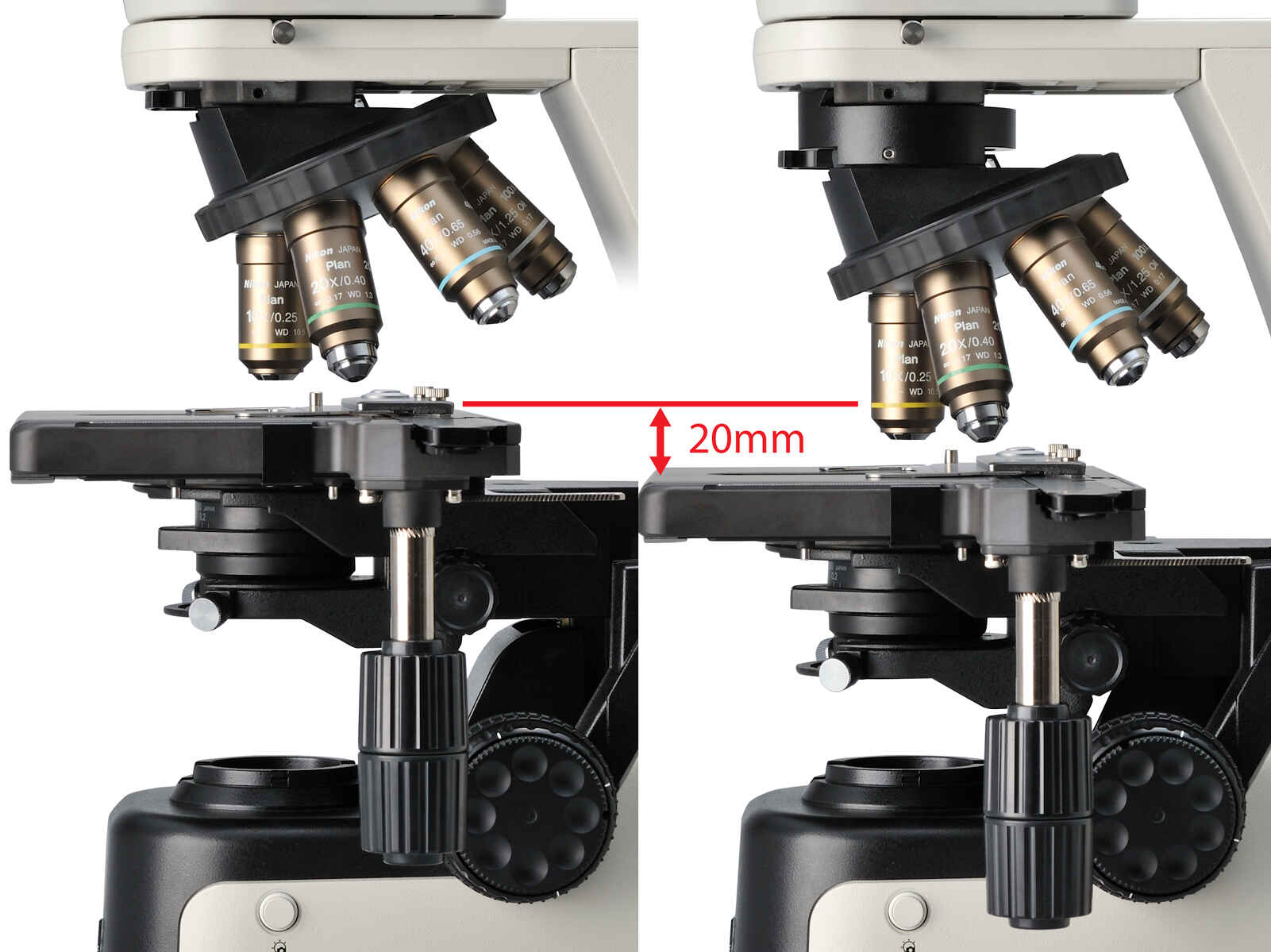

Torque-adjustable coarse knob + refocusing lock
-
-
Tube Options:
-
Ergonomic Binocular Tube C‑TE2 (10°–30° inclination, up to 40 mm extension)
-
Trinocular: C‑TF and C‑TT (same configurations as Ci‑E)
-
-
Nosepiece: Manual “intelligent” sextuple nosepiece with analyzer slot
-

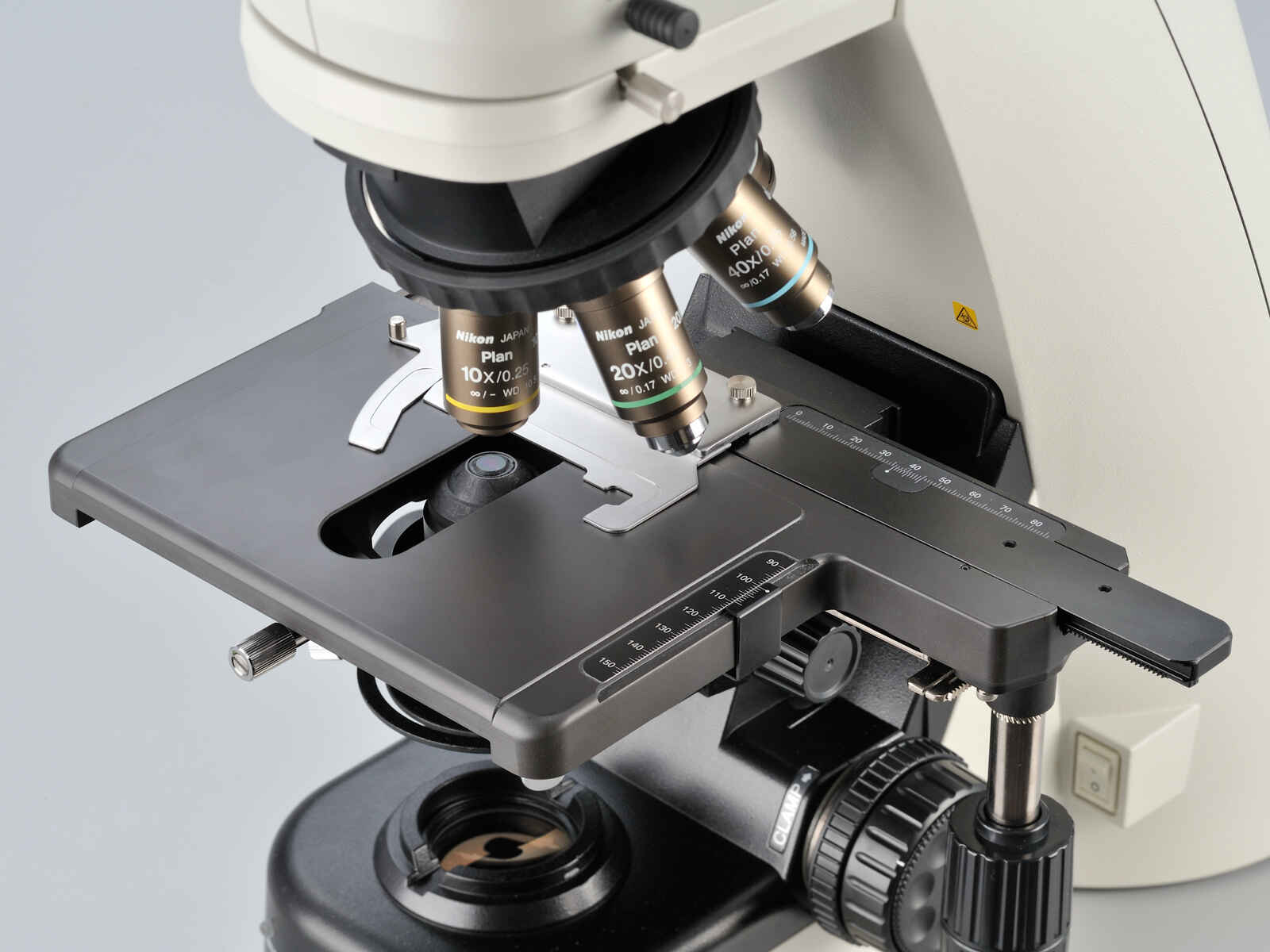

Stage:
-
Cross‑travel: 78 mm × 54 mm, with vernier scales
-
Adjustable stage handle height and torque
-
Same stage‑holder options as Ci‑E (C‑HIC, C‑SR2S, C‑CSR, etc.)
-
-
Condensers (Manual): Same manual condenser options as Ci‑E (Abbe, darkfield, phase, etc.
-
Observation Methods Supported: Brightfield, epi‑fluorescence, darkfield, phase contrast, simple polarizing, sensitive color polarizing
-
Epi‑Fluorescence Attachments: CI‑FL (4 cubes) and D‑FL (6 cubes) available
-
Epi‑Fluorescence Light Sources: Same as Ci‑E: LED, 130 W fiber, 100 W Hg
-
Power Consumption: ~38 W (brightfield)
-
Weight: ~13.4 kg (with standard binocular head)
You can find complete, updated details on the manufacturer’s website:
[Visit Nikon official product page]
